glm_flash.c File Reference

Code to flash group data from the GOES-17 Global Lightning Mapper. More...

#include <stdio.h>
#include <stdlib.h>
#include <assert.h>
#include "ncglm.h"

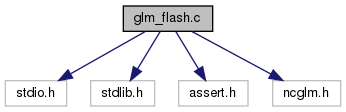

Include dependency graph for glm_flash.c:

Functions
int	glm_read_flash_structs (int ncid, size_t *nflash, GLM_FLASH_T *flash)
	Read and unpack all the flash data in the file. More...
int	glm_read_flash_arrays (int ncid, size_t *nflash, float *time_offset_of_first_event, float *time_offset_of_last_event, float *frame_time_offset_of_first_event, float *frame_time_offset_of_last_event, float *lat, float *lon, float *area, float *energy, short *quality_flag)
	Read and unpack all the flash data in the file. More...

Detailed Description

Code to flash group data from the GOES-17 Global Lightning Mapper.

Author

Ed Hartnett, 11/16/19

Function Documentation

glm_read_flash_arrays()

int glm_read_flash_arrays	(	int	ncid,
		size_t *	nflash,
		float *	time_offset_of_first_event,
		float *	time_offset_of_last_event,
		float *	frame_time_offset_of_first_event,
		float *	frame_time_offset_of_last_event,
		float *	lat,
		float *	lon,
		float *	area,
		float *	energy,
		short *	quality_flag
	)

Read and unpack all the flash data in the file.

It will be loaded into the pre-allocated array of struct GLM_FLASH_T.

Parameters

ncid	ID of already opened GLM file.
nflash	A pointer that gets the number of flashes. Ignored if NULL.
time_offset_of_first_event	Pointer to already-allocated array of float for time_offset_of_first_event data, or NULL if struct reads are being done.
time_offset_of_last_event	Pointer to already-allocated array of float for time_offset_of_last_event data, or NULL if struct reads are being done.
frame_time_offset_of_first_event	Pointer to already-allocated array of float for frame_time_offset_of_first_event data, or NULL if struct reads are being done.
frame_time_offset_of_last_event	Pointer to already-allocated array of float for frame_time_offset_of_last_event data, or NULL if struct reads are being done.
lat	Pointer to already-allocated array of float for lat data, or NULL if struct reads are being done.
lon	Pointer to already-allocated array of float for lon data, or NULL if struct reads are being done.
area	Pointer to already-allocated array of float for area data, or NULL if struct reads are being done.
energy	Pointer to already-allocated array of float for energy data, or NULL if struct reads are being done.
quality_flag	Pointer to already-allocated array of short for quality flag data, or NULL if struct reads are being done.

Returns

0 for success, error code otherwise.

Author

Ed Hartnett

glm_read_flash_structs()

int glm_read_flash_structs	(	int	ncid,
		size_t *	nflash,
		GLM_FLASH_T *	flash
	)

Read and unpack all the flash data in the file.

It will be loaded into the pre-allocated array of struct GLM_FLASH_T.

Parameters

ncid	ID of already opened GLM file.
nflash	A pointer that gets the number of flashes. Ignored if NULL.
flash	Pointer to already-allocated arrat of GLM_FLASH_T.

Returns

0 for success, error code otherwise.

Author

Ed Hartnett
